403C-17 (HM)
403D-17 (GS)
?
NATURALLY ASPIRATED
3 Cylinders
Bore: 3.3 in / 84.00 mm
Stroke: 3.9 in / 100.00 mm
Displacemement: 101.4 in3 / 1.662 Lt
Compression Ratio: 22.5:1
?
?

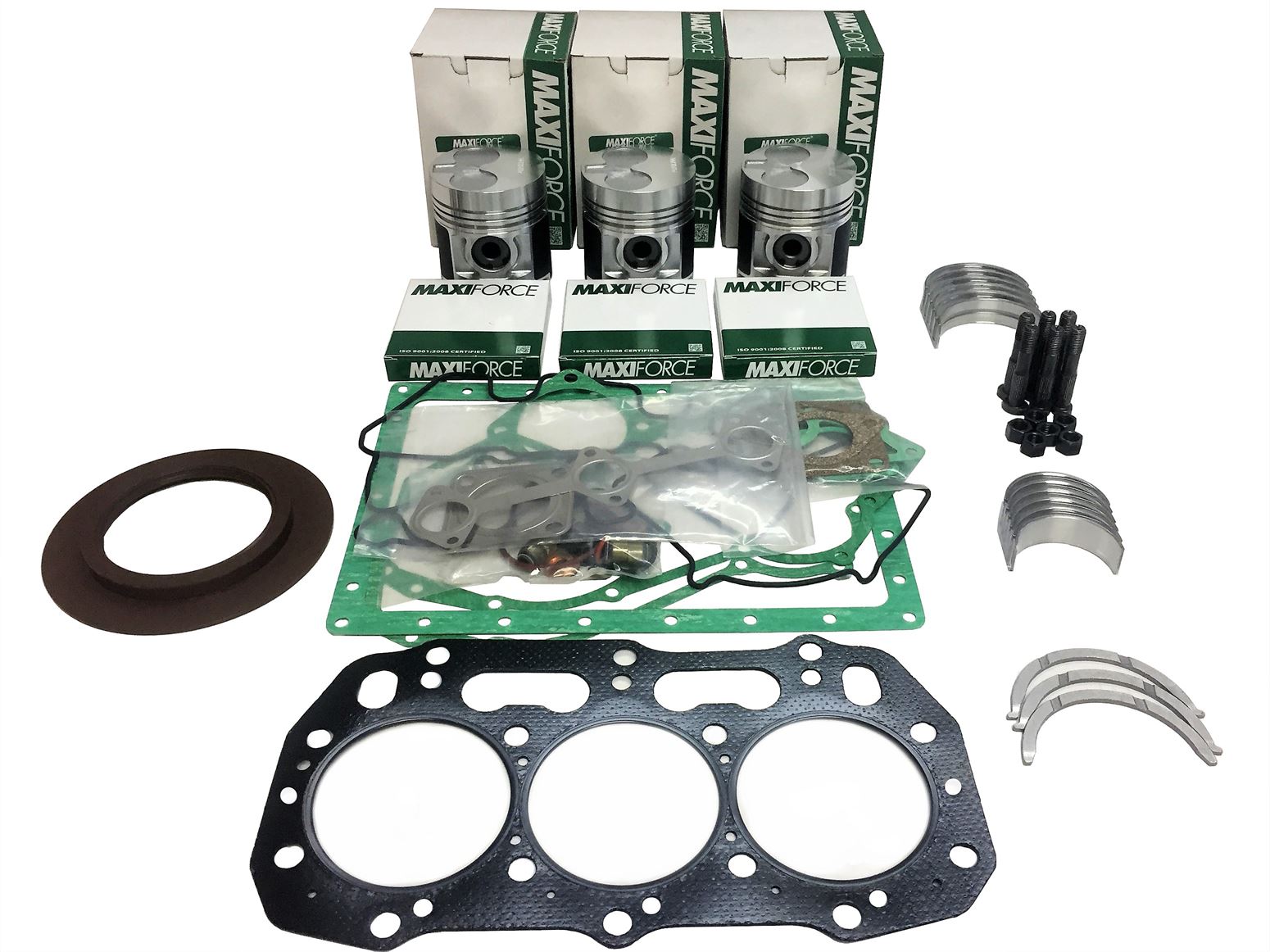

Rebuild Kit Includes
Qty | Description |
3 | Pistons |
3 | Ring Sets |
6 | Bolt, Connecting Rod |
6 | Nut Connecting Rod |
1 | Bushing, Crankshaft |
3 | Bushing, Connecting Rod |
1 | Main Bearing Set |
1 | Connecting Rod Bearing Set |
1 | Thrust Washer |
1 | Front Crank Seal |
1 | Rear Crankshaft Seal |
1 | Upper Gasket Set |
1 | Lower Gasket Set |
1 | Camshaft Bushing |
?
?
?
APPLICATIONS
CASE-IH
D35 Tractor
DX34 Tractor
DX35 Tractor
Farmall 35 Tractor
?
NEW HOLLAND
Boomer 2035 Tractor
T1520 Tractor
T2220 Tractor
TC34DA Tractor
TC35 Tractor
TC35A Tractor
TC35D Tractor
TC35DA Tractor
