JOHN DEERE 4045T/H
For Tier 2 & Tier 3 Applications
2 Valve per Cylinder
CODE 4838
4 Cylinders
Bore: 4.19 in 106.5 mm
Pin ?: 1.6250 in (+/- .0002) = 41mm
Con Rod (m): R500335 (Fractured) (9)
Piston (m): RE527039
?
?

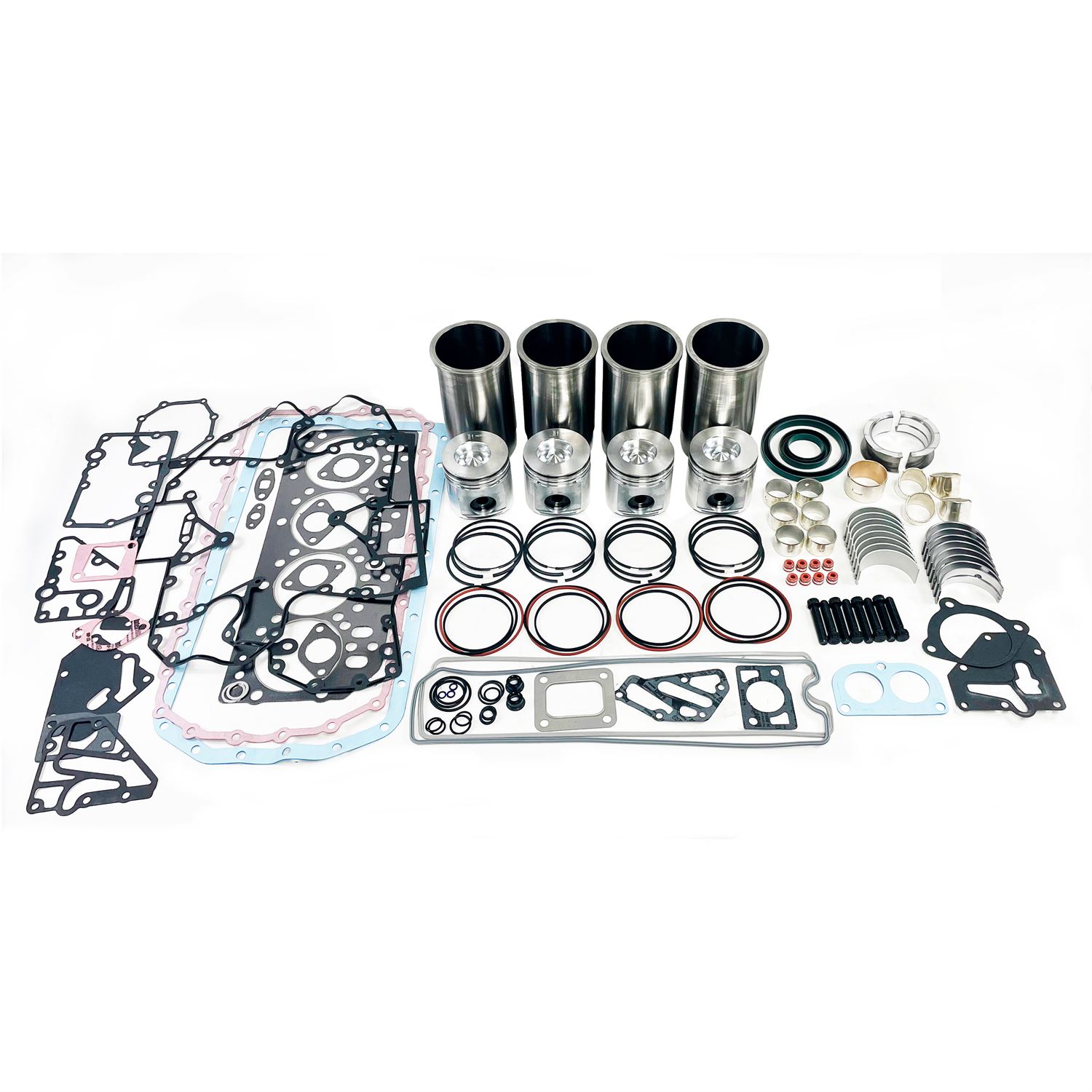

Overhaul Kit Includes
?
Qty | Description |
1 | Front Crankshaft Seal |
1 | Thrust Bearing Set |
1 | Grommet Kit |
4 | Con Rod Bushing |
6 | Con Rod Capscrew |
1 | Con Rod Bearings set |
4 | Main Bearing Set |
1 | Rear Oil Seals |
1 | Upper Gasket Set |
1 | Lower Gasket Set |
4 | Pistons |
4 | Piston Ring Sets |
4 | Piston Pins |
4 | Ring Sets |
4 | Liners |
4 | Liner O’Rings |
??
APPLICATIONS
?
OEM
4045HE051, 4045HL284, 4045HL282, 4045HL287, 4045HL287, 4045HL288, 4045HL288, 4045HP052, 4045HT054, 4045HT054, 4045HT064, 4045HT056, 4045HT065, 4045HT059, 4045HT067, 4045HT061, 4045HT074, 4045HT064, 4045HT075, 4045HT065, 4045HDW53, 4045HT072, 4045HDW54, 4045HT086, 4045HE050, 4045HT087, 4045HL280, 4045HT281, 4045HL281, 4045HF285, 4045HL282, 4045HF285H, 4045HL283, 4045HF285I, 4045HCP07, 4045HCP05, 4045HCP11, 4045HCP28, 4045HXU01, 4045TF285
AGRICULTURAL
5080R, 6130, 5080RN, 6130D, 5090R, 6140D, 5090RN, 6230, 5100R, 6325, 5100RN, 6330, 5105M, 6430, 5105ML, 6425, 6100D, 6534, 6110D, 4896, 6115D, 6225, 6125D, 6230, 6230, 6230, 6230, 5090R, 5080R, 5100R, 6100D, 6115D, 6130, 6130D, 6140D, 6325, 6330, 6425, 6430, 6534
AKSA
APD-AGJ80, APD-AG100, APD-AGJ125, APD-AT80, APD-AT100, APD-EPAJ80, APD-EPAJ100, APD-EPAJ125, APD-ULJ80, APD-ULJ100, APD-ULJ125
CONSTRUCTION
310J, 437D, 310SJ, 650J, 335D, 710J, 344J, ML1335, 410J, 160D, 210LJ, 444K, 344J
HI POWER GENSET
HJW 85 T6, HRJW 90 T6, HJW 105 T6, HRJW 115 T6, HJW 130 T6, HRJW 145 T6, HRJW 75 T6
SDMO Generator
R90C3, R110C3
SKID STEER
280, 280 Series II
